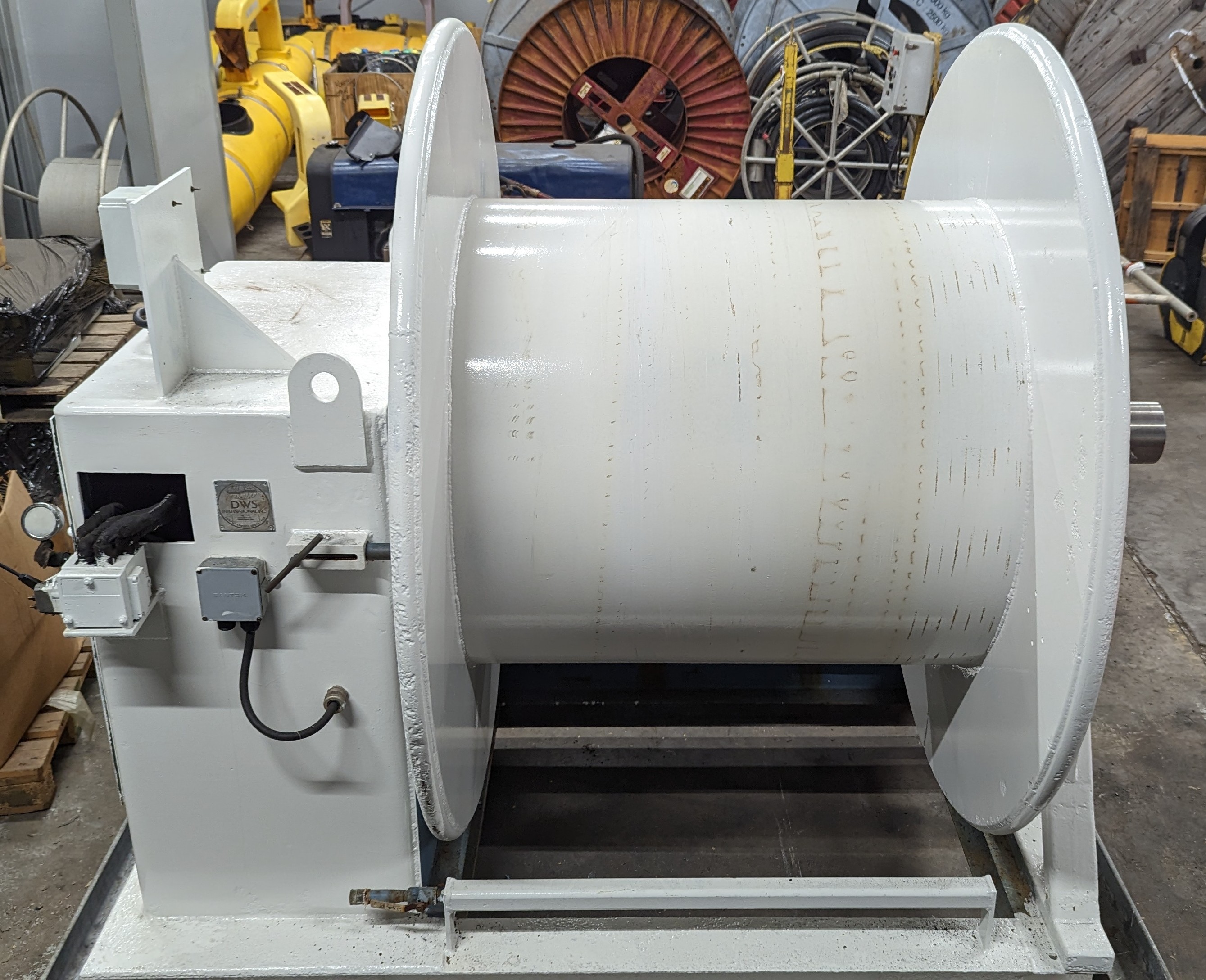

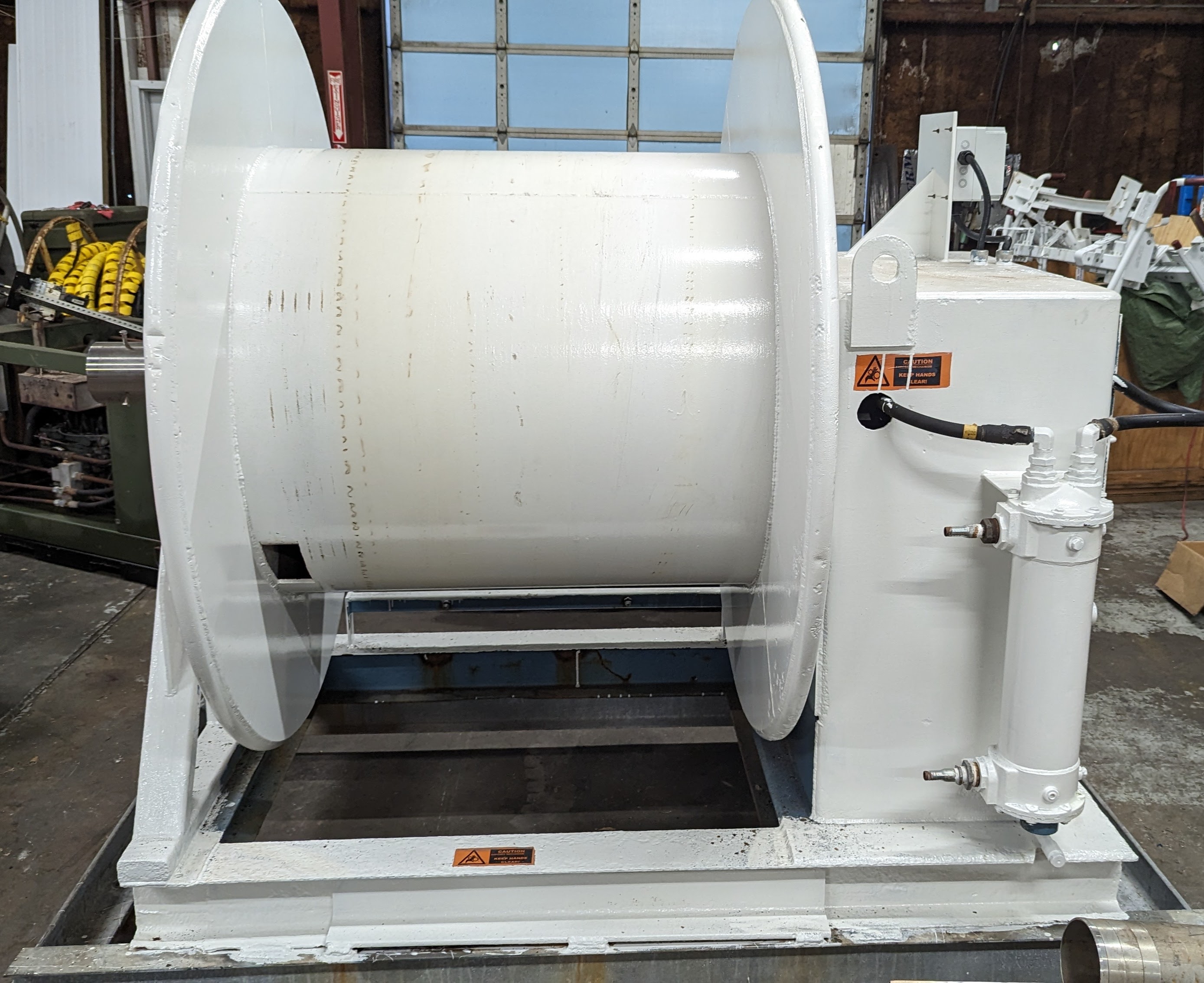

Small Electric Oceanographic Winch

Small Electric/hydraulic Hydrographic winch which is powered by 3 phase 220v to run the internal hydraulic power unit.

Winch Shaft

• Shaft Diameter = 75mm
• Shaft protruding from bearing = 62mm
• Bore diameter = 32mm (for cable to go through for slip ring)

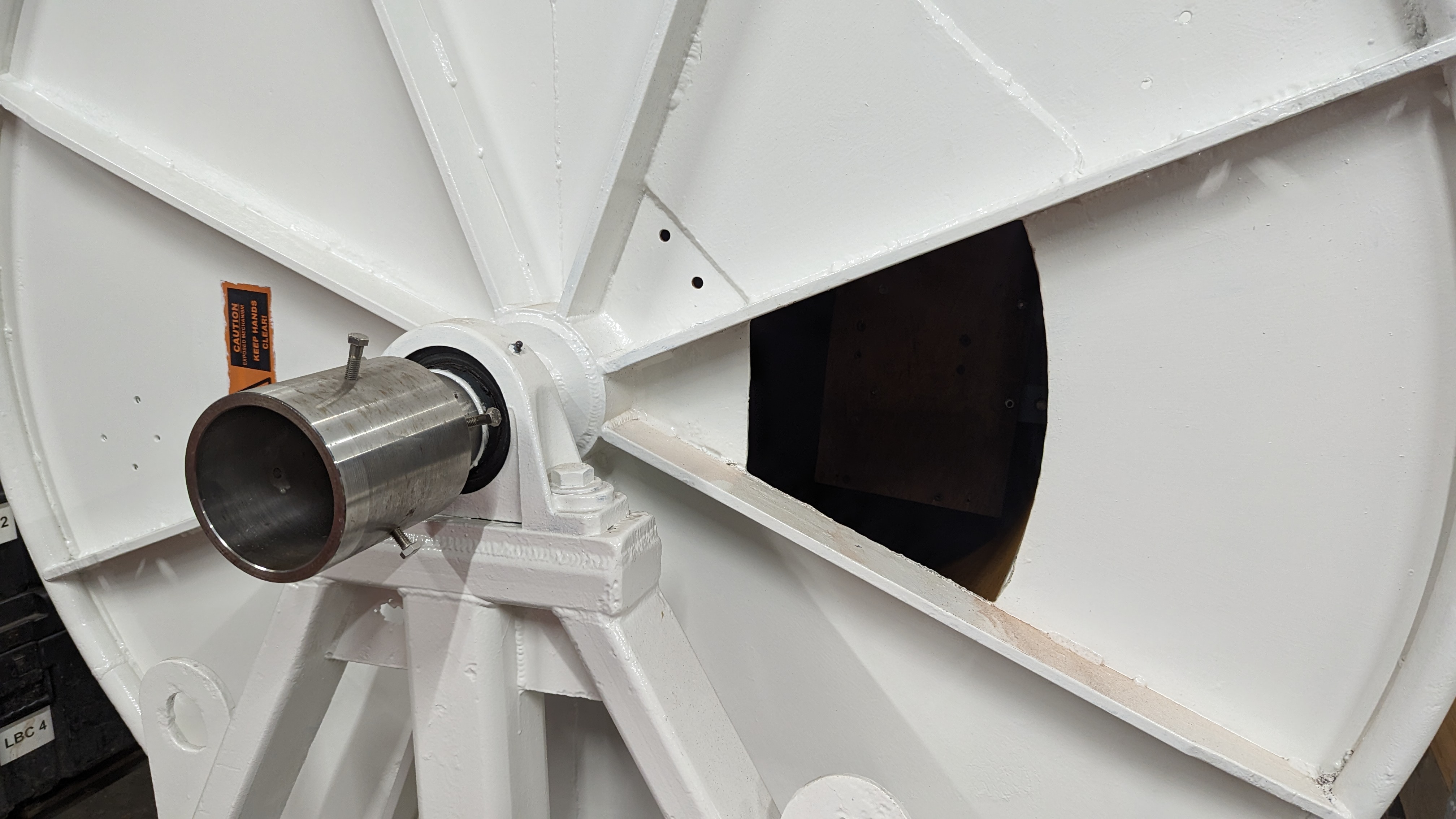

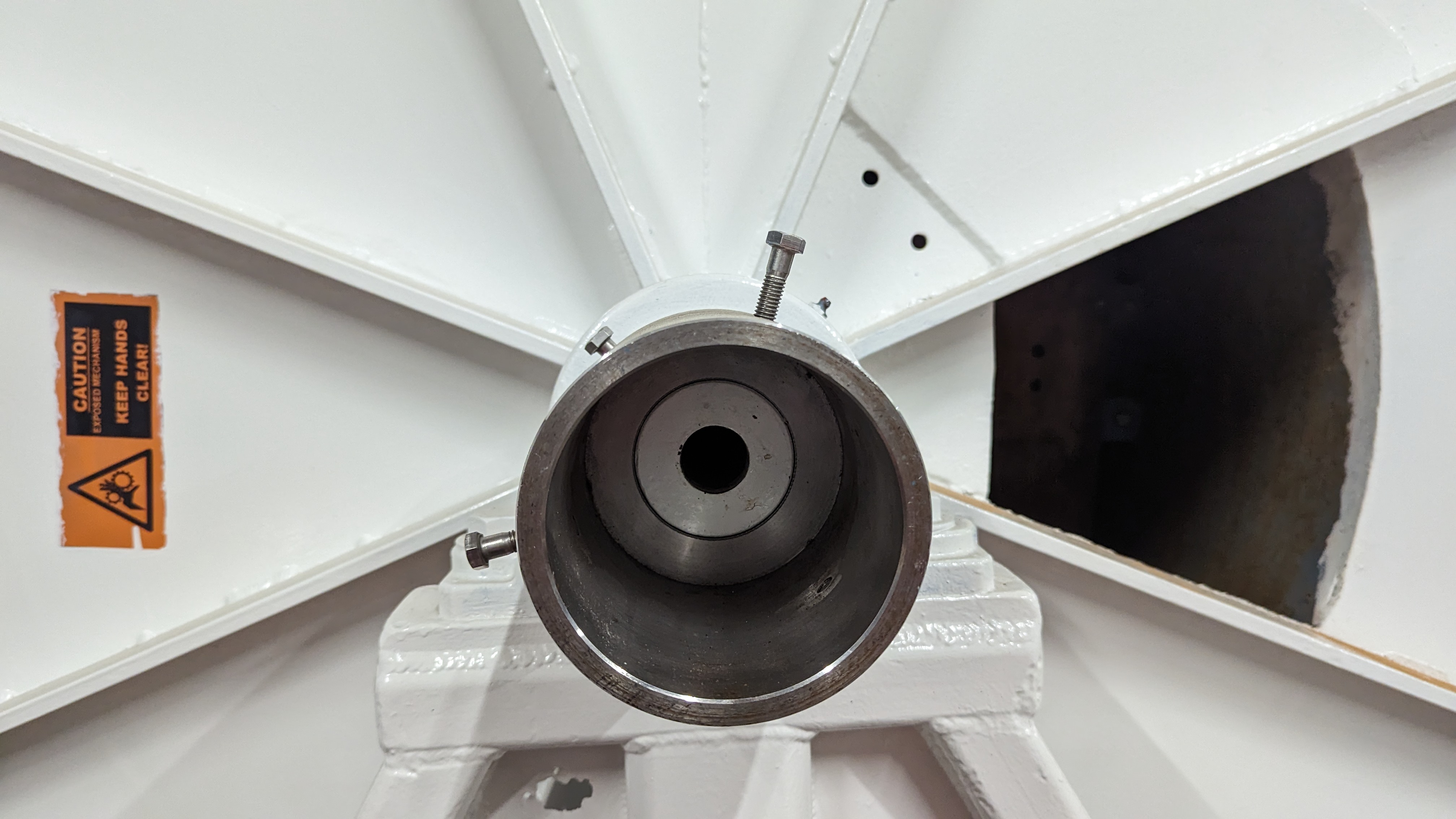

Slip ring adapter

• Stainless steel; slides on to winch shaft.
• Bore diameter = 120mm
• Bore depth = 140mm

Foot Print

• 100” wide x 68“ deep x 72” tall
• Drum Dimensions are 68” OD (1725mm), 40” ID (1016mm) with a width of 42” (1066 mm)

Test certificates available on request.
